No Longer Available - Twilight & Legend Series 4 Filter Set-PMA40L-F2M -X268543-PMA25-X268551-(2)-PMA-EP2-X268511

This set is no longer available. This is replaced by TWLEPRSET2

Notes on filter Placement:Â Look at the bulkhead (filter receptacles) the larger hose gets the filter combo set (X268551Â & X268511). The smaller hose gets the PMA40L-F2M-M Canister Filter. Master Spas recommends that you replace your primary filters (PMA25 - X268551 and PMA40L-F2M - X268543) every 12 to 18 months. Master Spas recommends that you replace your Eco-Pur filter (PMAEP2 - X268511) every 6 months. Looks like two filters side by side in the filter basket, however the PMAEP2 filter should be inside the PMA25-M, so it is really three filters.

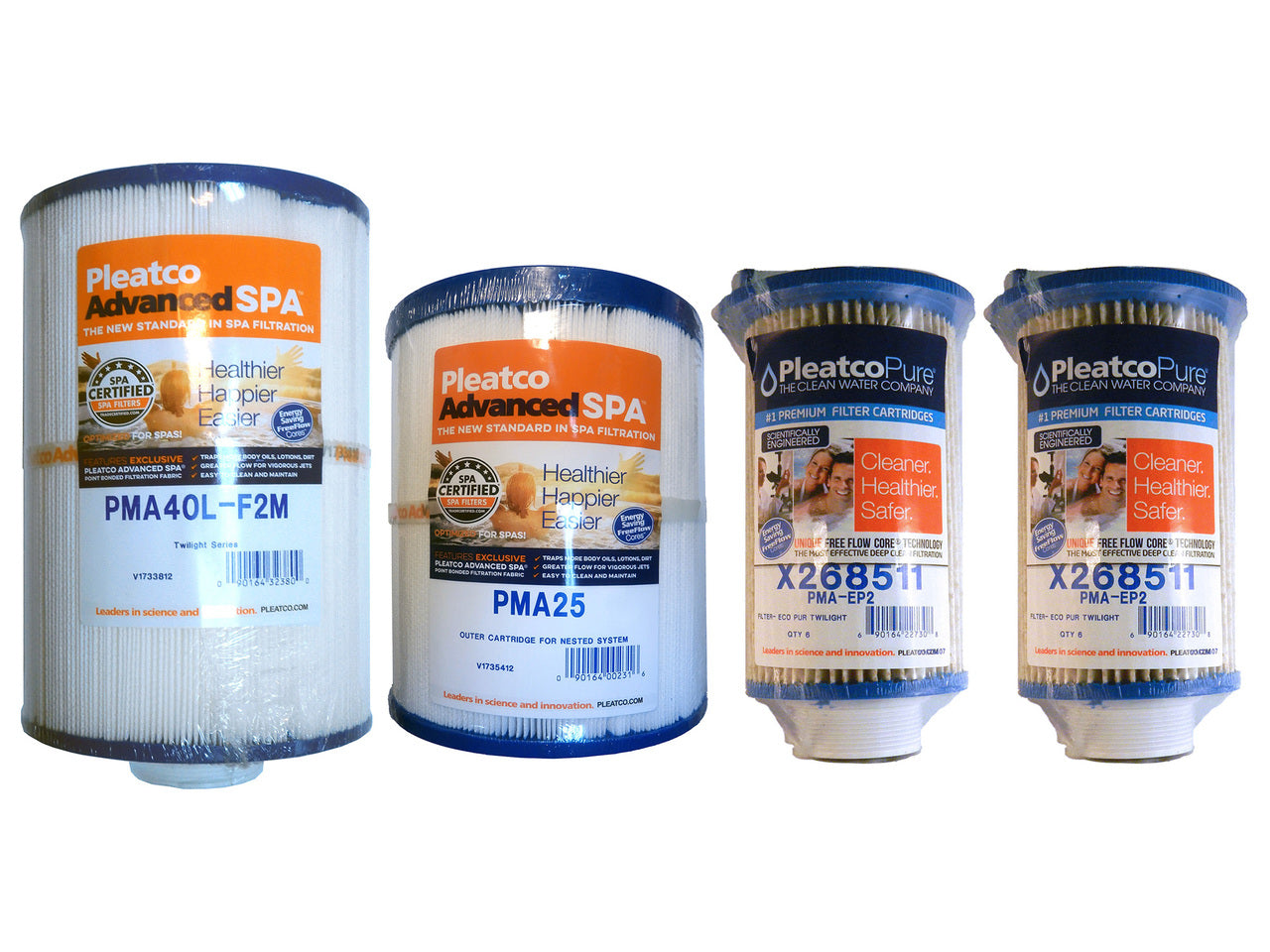

This sale is for:

1 of X268551 - PMA25
1 of X268543 - PMA40L-F2M - Filter Element
2 of X268511 - PMA-EP2 - Eco Pur Mineral Filter

Filter Details:

Master Spas Part#: X268543
Pleatco Part # PMA40L-F2M
Diameter: 6.0 inches (15.24 cm)
Length: 9.25 inches (23.495 cm)
Total Length (including top and bottom): 10.50 inches (26.67 cm)
Bottom Hole: 2.0 inches (5.08 cm)
Material Area: 40 Sq feet (Approximately 4 Sq m)
Weight: 1 lbs. 12.8 oz. (820 g)

UPC:Â 090164323800

Master Spas Part#: X268551
Pleactco Part # PMA25
Diameter: 6.125 inches (15.5575 cm)
Length: 8.0 inches (20.32 cm)
Total Length (including top and bottom): 8.25 inches (20.955 cm)
Top Hole: 4.125 inches (10.4775 cm)
Bottom Hole: 4.125 inches (10.4775 cm)
Material Area: 25 Sq feet (Approximately 2 Sq m)
Weight: 1 lbs. 15.2 oz. (880 g)

UPC: 090164002316

Master Spas Part#: X268511
PMA-EP2
Diameter:
Top Diameter: 5.0 inches (12.70 cm)
Diameter: 4.0 inches (10.16 cm)
Length: 7.625 inches (19.3675 cm)
Bottom Hole: 2.0 inches (5.08 cm)
Total Length (including top and bottom): 8.6875 inches (22.06625 cm)

UPC:690164227308
