NLA X804663 - 2.5 inch Grey Super Hi-Flow DSG VGB Suction Wallfitting Assembly NLA

NLA X804663 - 2.5 inch Grey Super Hi-Flow DSG VGB Suction Wallfitting Assembly NLA
This Product is no longer available from the manufacturer.

Refer to: X804664 - 2.5 inch Super Hi-Flow DSG VGB Suction Wallfitting Assembly
Cap Dimensions:
Outside Diameter: 5.1875 inches (13.17625 cm)
Inside Diameter: 4.90625 inches (12.461875 cm)
Height: 1.25 inches (3.175 cm)
Weight: 4.0 oz. (115 g)
Beveled: Beveled on sides
Attached by 2 (side) screws (included)

Cover Diameter: 5-3/16 inches
Suction Fitting Part Type: Cover
Color: Gray
Wall Flow Rate:Â Wall only: 180 gpm submerged, 232 gpm submerged with vacuum break
Manufacturer: Waterway

Listed 2K39
Unit Dimensions:
Face Diameter: 5.1875 inches (13.17625 cm)
Height: 3.25 inches (8.255 cm)
Plumbing Inside Diameter: 2.6875 inches (6.82625 cm)
Plumbing Outside Diameter: 3.125 inches (7.9375 cm)
Weight: 12.2 oz. (340 g)

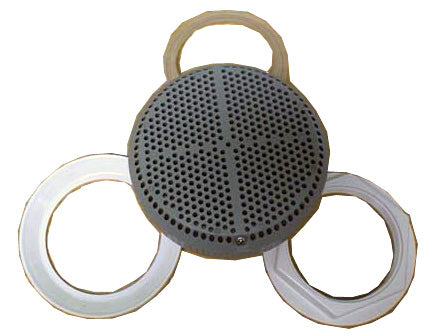

Included:
1 (one) DSG Suction Cover (Outside Screw Style)
[2 screws are located on the outside bevel]
1 (one) DSG Suction Body
1 (one) Gasket
1 (one) Compensation Ring
1 (one) Nut

Cap is very similar to part:
SUCTION5 - 5 inch Gray Suction Cover - needs 2 side screws

VGB is a term referring to compliance with Federal Law:
Virginia Graeme Baker Pool and Spa Safety Act
